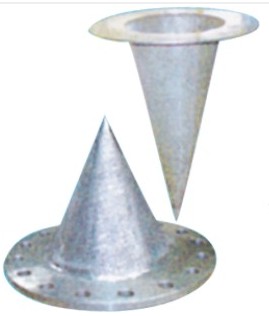

| 型號： | SC | 口徑： | |
| 壓力： | 0.6~5.0(150Lb~600Lb) | 材質： | 鑄鋼、不銹鋼，過濾網為304，過濾網目數以客戶要求為標準。 |
|
DN |
d |
i |
h |
t |
|
|
25 |
1 |
70 |
46 |
90 |
5 |
|
32 |
1-1/4 |
80 |
61 |
100 |
5 |
|
40 |
1-1/2 |
90 |
66 |
120 |
5 |
|
50 |
2 |
105 |
81 |
130 |
5 |
|
65 |
2-1/2 |
125 |
91 |
140 |
5 |
|
80 |
3 |
142 |
111 |
150 |
5 |
|
100 |
4 |
162 |
141 |
160 |
5 |
|
125 |
5 |
192 |
172 |
190 |
10 |
|
150 |
6 |
218 |
202 |
210 |
10 |
|
200 |
8 |
272 |
262 |
240 |
10 |
|
250 |
10 |
326 |
322 |
270 |
10 |
|
300 |
12 |
382 |
362 |
300 |
10 |
|
DN |
d |
i |
h |
t |
|
|
25 |
1 |
70 |
46 |
90 |
5 |
|
32 |
1-1/4 |
80 |
61 |
100 |
5 |
|
40 |
1-1/2 |
90 |
66 |
120 |
5 |
|
50 |
2 |
105 |
81 |
130 |
5 |
|
65 |
2-1/2 |
125 |
91 |
140 |
5 |
|
80 |
3 |
142 |
111 |
150 |
5 |
|
100 |
4 |
162 |
141 |
160 |
5 |
|
125 |
5 |
192 |
172 |
190 |
10 |
|
150 |
6 |
218 |
202 |
210 |
10 |
|
200 |
8 |
272 |
262 |
240 |
10 |
|
250 |
10 |
326 |
322 |
270 |
10 |
|
300 |
12 |
382 |
362 |
300 |
10 |
|
公稱直徑 DN |
Φ |
L |
h |
t |
||
|
PN0.6 |
PN1.0 |
PN2.5 |
||||
|
25 |
62 |
70 |
70 |
26 |
90 |
2 |
|
32 |
72 |
80 |
80 |
34 |
100 |
2 |
|
40 |
84 |
90 |
90 |
41 |
120 |
2 |
|
50 |
94 |
105 |
105 |
55 |
130 |
2 |
|
65 |
114 |
125 |
125 |
77 |
140 |
2 |
|
80 |
132 |
142 |
142 |
92 |
150 |
2 |
|
100 |
152 |
162 |
162 |
113 |
160 |
2 |
|
125 |
182 |
192 |
192 |
143 |
190 |
2 |
|
150 |
206 |
218 |
218 |
172 |
210 |
2 |
|
200 |
262 |
272 |
282 |
242 |
240 |
2 |
|
250 |
316 |
326 |
340 |
302 |
270 |
3 |
|
300 |
370 |
382 |
395 |
363 |
300 |
3 |
|
350 |
420 |
438 |
454 |
425 |
340 |
6 |
|
400 |
470 |
492 |
510 |
479 |
365 |
6 |
|
500 |
575 |
590 |
616 |
600 |
430 |
6 |
|
600 |
676 |
690 |
726 |
714 |
490 |
6 |
|
公稱直徑 DN |
Φ |
L |
h |
t |
||
|
PN0.6 |
PN1.0 |
PN2.5 |
||||
|
25 |
62 |
70 |
70 |
46 |
90 |
2 |
|
32 |
72 |
80 |
80 |
61 |
100 |
2 |
|
40 |
84 |
90 |
90 |
66 |
120 |
2 |
|
50 |
94 |
105 |
105 |
81 |
130 |
2 |
|
65 |
114 |
125 |
125 |
91 |
140 |
2 |
|
80 |
132 |
142 |
142 |
111 |
150 |
2 |
|
100 |
152 |
162 |
162 |
141 |
160 |
2 |
|
125 |
182 |
192 |
192 |
172 |
190 |
2 |
|
150 |
206 |
218 |
218 |
202 |
210 |
2 |
|
200 |
262 |
272 |
282 |
262 |
240 |
2 |
|
250 |
316 |
326 |
340 |
322 |
270 |
3 |
|
300 |
370 |
382 |
395 |
362 |
300 |
3 |
|
350 |
420 |
438 |
454 |
404 |
340 |
6 |
|
400 |
470 |
492 |
510 |
464 |
365 |
6 |
|
500 |
575 |
590 |
616 |
564 |
430 |
6 |
|
600 |
676 |
690 |
726 |
684 |
490 |
6 |
